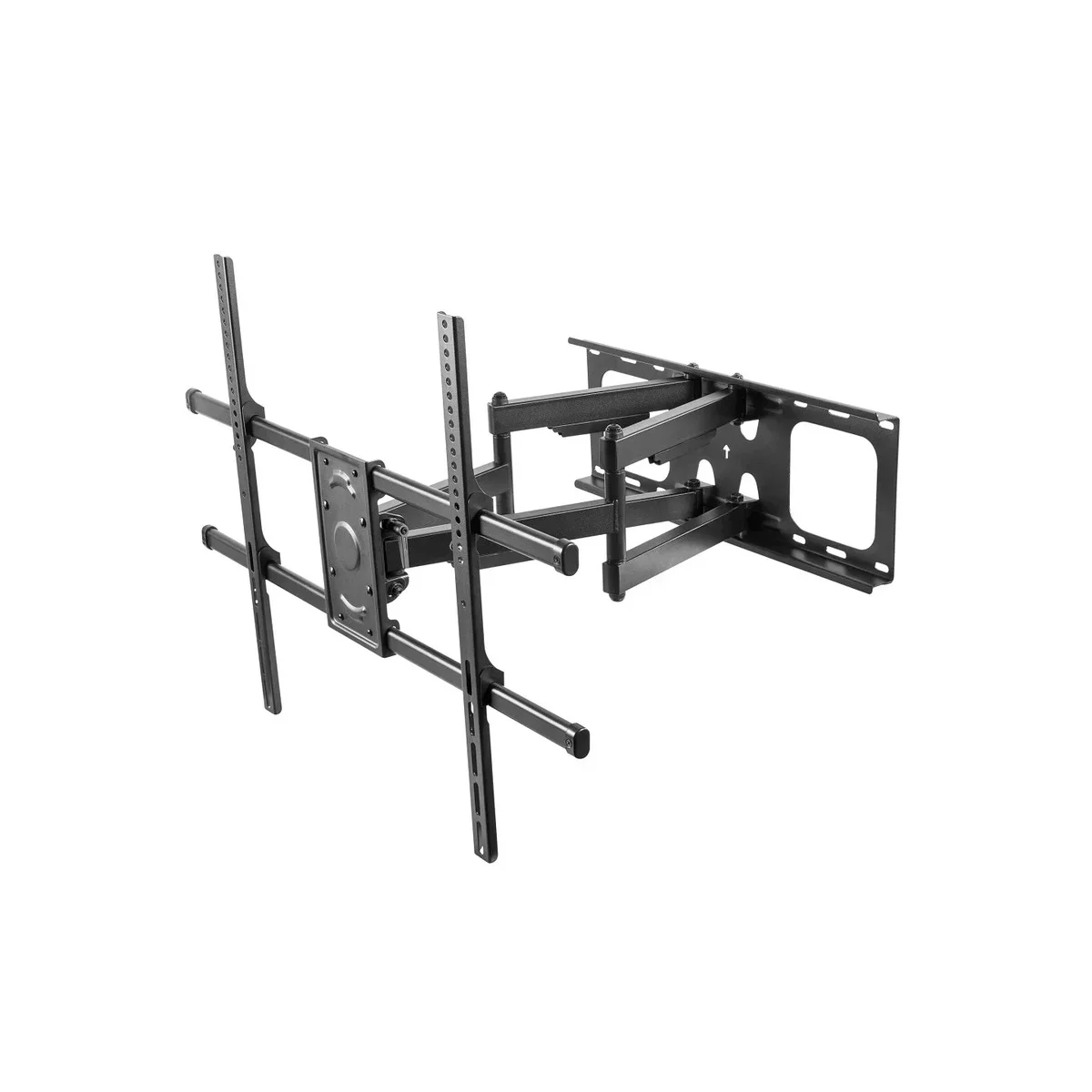

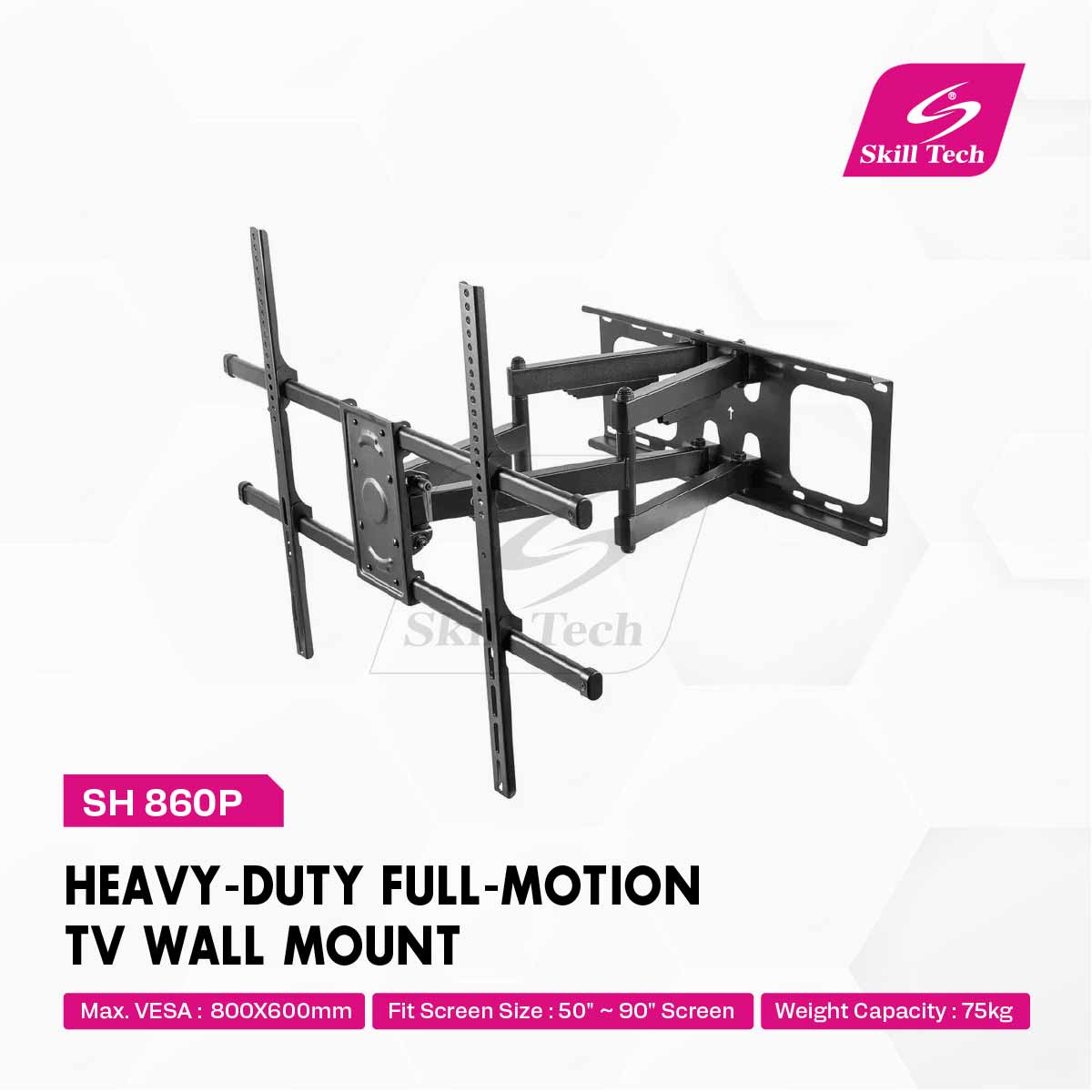

SH 860P Heavy-Duty Full-Motion TV Wall Mount

Product Category:	Full-Motion TV Wall Mount
Rank:	Standard
Material:	Steel
Pipe Size:	40x25x1.5mm (1.6"x0.98"x0.059")
Surface Finish:	Powder Coating
Color:	Fine Texture Black

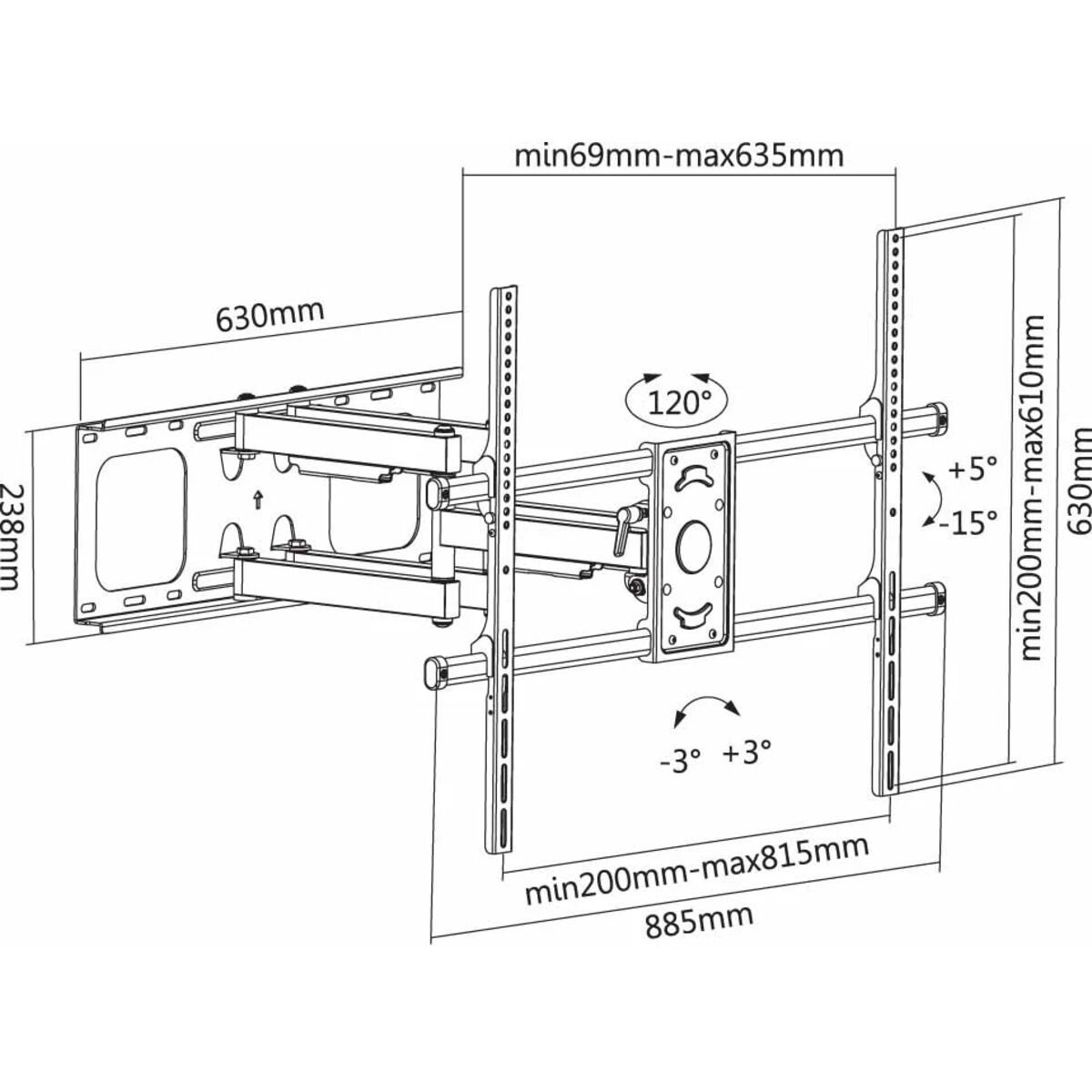

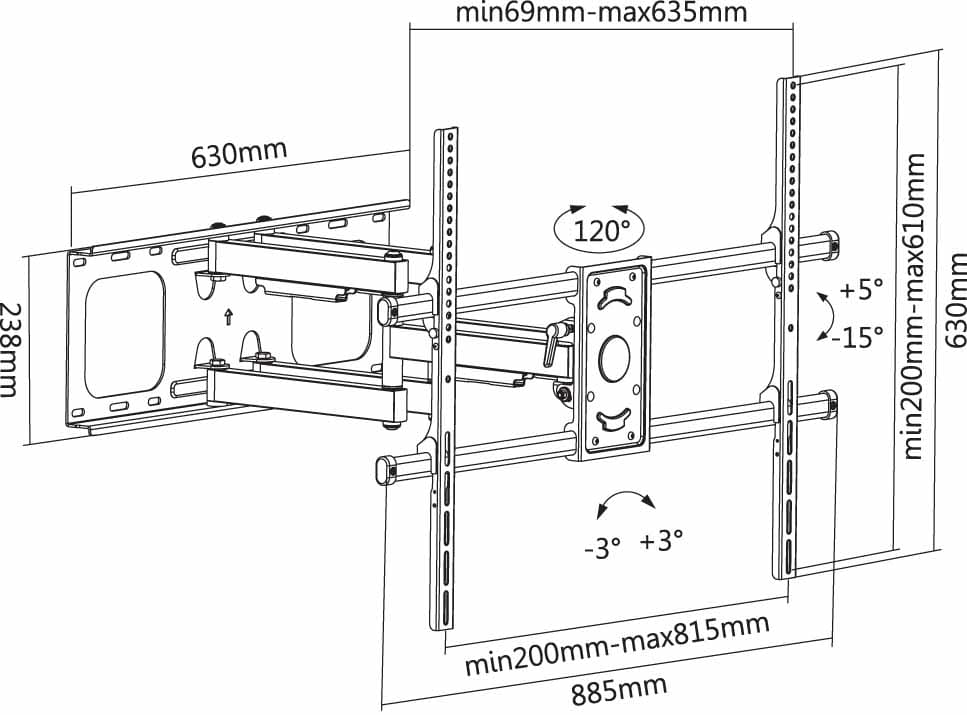

Dimensions:	635x885x630mm (25"x34.8"x24.8")
Fit Screen Size:	Suitable for most 50" ~ 90" Screen
Fit Curved TV:	Yes
Mounting Hole Pattern:	VESA & Universal
Max. VESA:	800X600mm
Weight Capacity:	75kg
Strength Tested:	2 Times Approved
Profile:	69-635mm (2.7"~25")
Tilt Range:	+5°~-15°
Swivel Range:	+60° ~ 60°
Screen Level:	+3° ~ -3°
Screen Freely Tilting:	No
Installation:	Double Stud (406mm/450mm/600mm), Solid Wall
Panel Type:	Detachable Panel
Wall Plate Type:	Fixed Wall Plate
Cable Management:	Yes
Anti-theft:	No
Bubble Level:	Hook-on Bubble Level(Included in Components Package)

TV-WALL-MOUNT

Wide Compatibility: Supports most 50"–90" flat and curved TVs with VESA & Universal mounting up to 800x600mm.
Strong Build: Heavy-duty steel construction with 75kg load capacity and dual-stud solid wall installation.
Flexible Adjustability: Offers +5° to -15° tilt, ±60° swivel, and ±3° screen leveling.
Extended Reach: Full-motion extension range of 69–635mm (2.7"–25") for optimal viewing angles.
Convenient Features: Includes cable management, detachable panel, and a hook-on bubble level for easy setup.

The SH 860P Heavy-Duty Full-Motion TV Wall Mount is designed for large flat and curved screens from 50" to 90". Built from strong steel with a durable powder-coated finish, it supports up to 75kg. With a full-motion profile of 69–635mm, it offers ±60° swivel, ±15° tilt, and ±3° screen leveling. Compatible with VESA & Universal mounts, it features cable management, a detachable panel, and includes a hook-on bubble level for precise installation.
