| Product Category: | TV Ceiling Mount |
| Rank: | Standard |
| Material: | Steel |
| Metal Sheet Thickness: | Bracket Arm THK=1.5mm cold-rolled sheet,VESA Panel THK=1.5mm cold-rolled sheet,Wall Plate THK=1.8mm cold-rolled sheet |
| Pipe Size: | φ35x1mm Round Steel Tube,φ32x1mm Round Steel Tube |
| Surface Finish: | Powder Coating |
| Color: | Fine Texture Black |

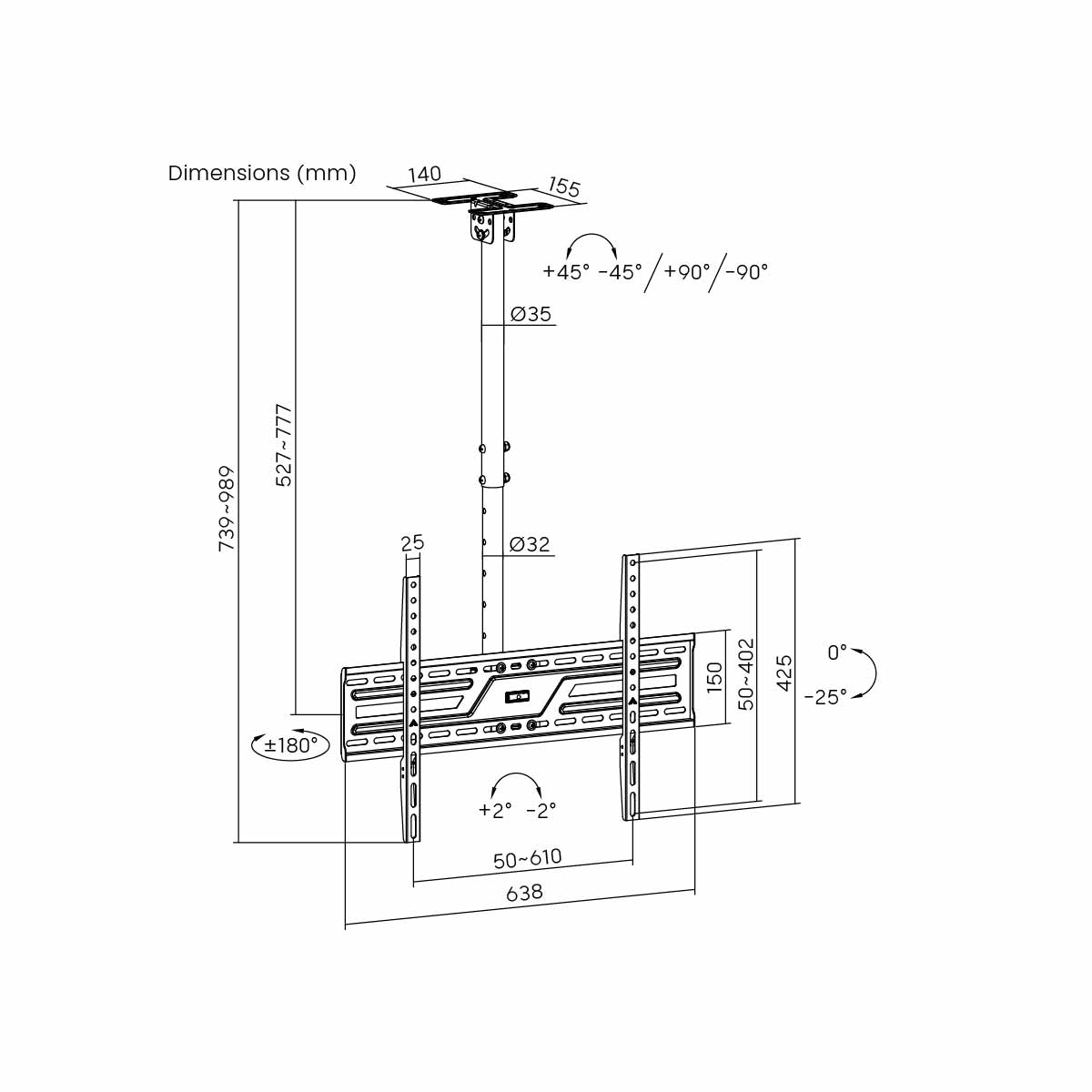

| Dimensions: | 989x638x174mm (38.9"x25.1"x6.9") |
| Fit Screen Size: | Suitable for most 37''~ 86" Screen |
| Fit Curved TV: | Yes |
| Mounting Hole Pattern: | VESA Only |
| Max. VESA: | 600X400mm |
| Weight Capacity: | 50kg (110lbs) |
| Strength Tested: | 2 Times Approved |
| Profile: | 527~777mm (20.7"~30.6") |
| Tilt Range: | 0°~-25° |
| Swivel Range: | +180°~-180° |
| Screen Level: | +2°~-2° |
| Installation: | Solid Wall,Single Stud |
| Panel Type: | Detachable Panel |
| Wall Plate Type: | Fixed Wall Plate |
| Cable Management: | Yes |
| Accessory Kit Package: | Normal/Ziplock Polybag,Compartment Polybag |
Wide TV Compatibility – Supports 37″–86″ flat and curved TVs with VESA patterns up to 600×400mm.
Height Adjustable Design – Telescopic mounting pole adjusts from 527–777mm for versatile ceiling installation.
Flexible Viewing Angles – Offers 0° to –25° tilt, +180°~-180° swivel, and +2°~-2° screen leveling for optimal positioning.
Strong Steel Construction – Durable build supports up to 50kg and is strength-tested twice for reliable performance.
Easy Installation & Management – Detachable panel, fixed wall plate, and integrated cable management ensure clean, hassle-free setup.

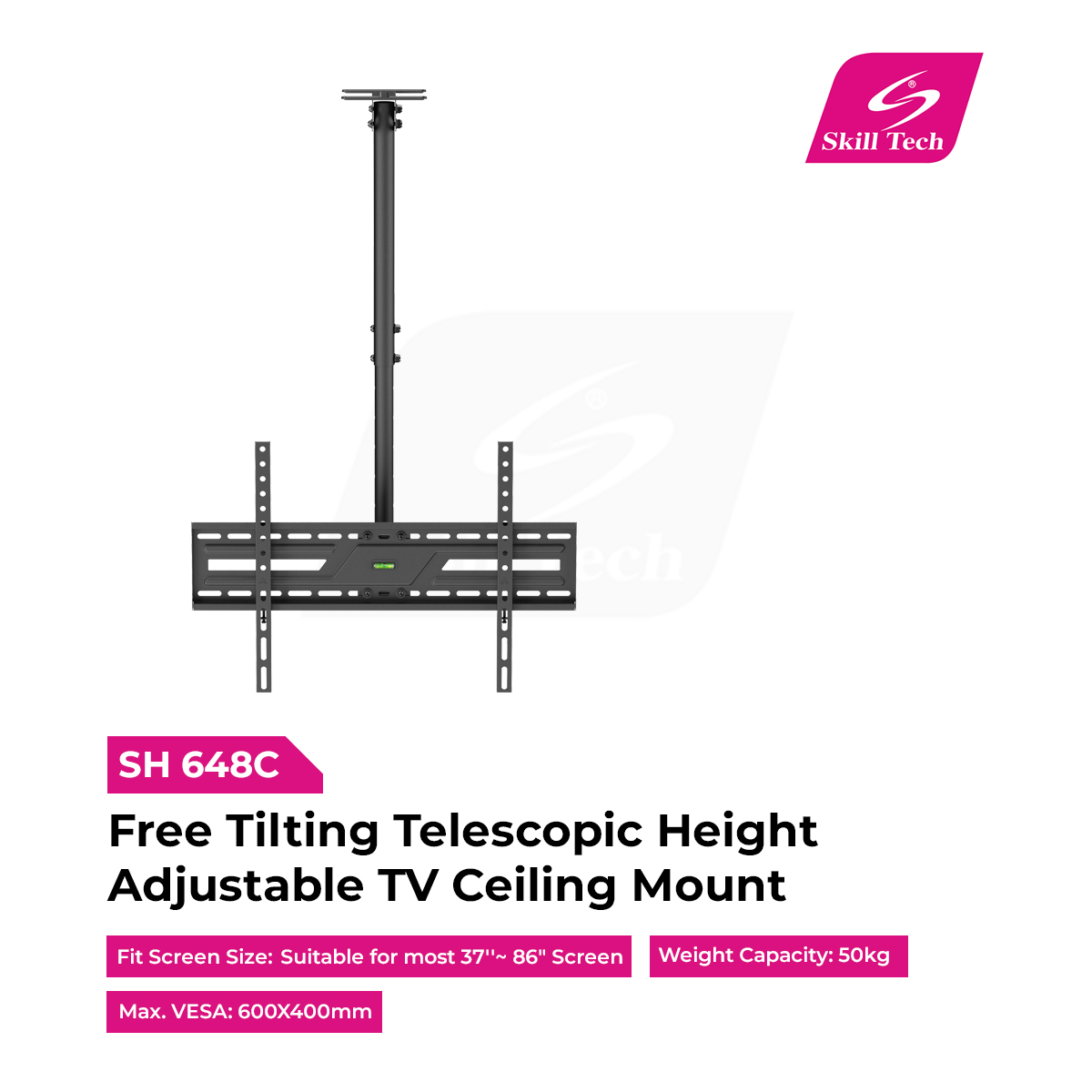

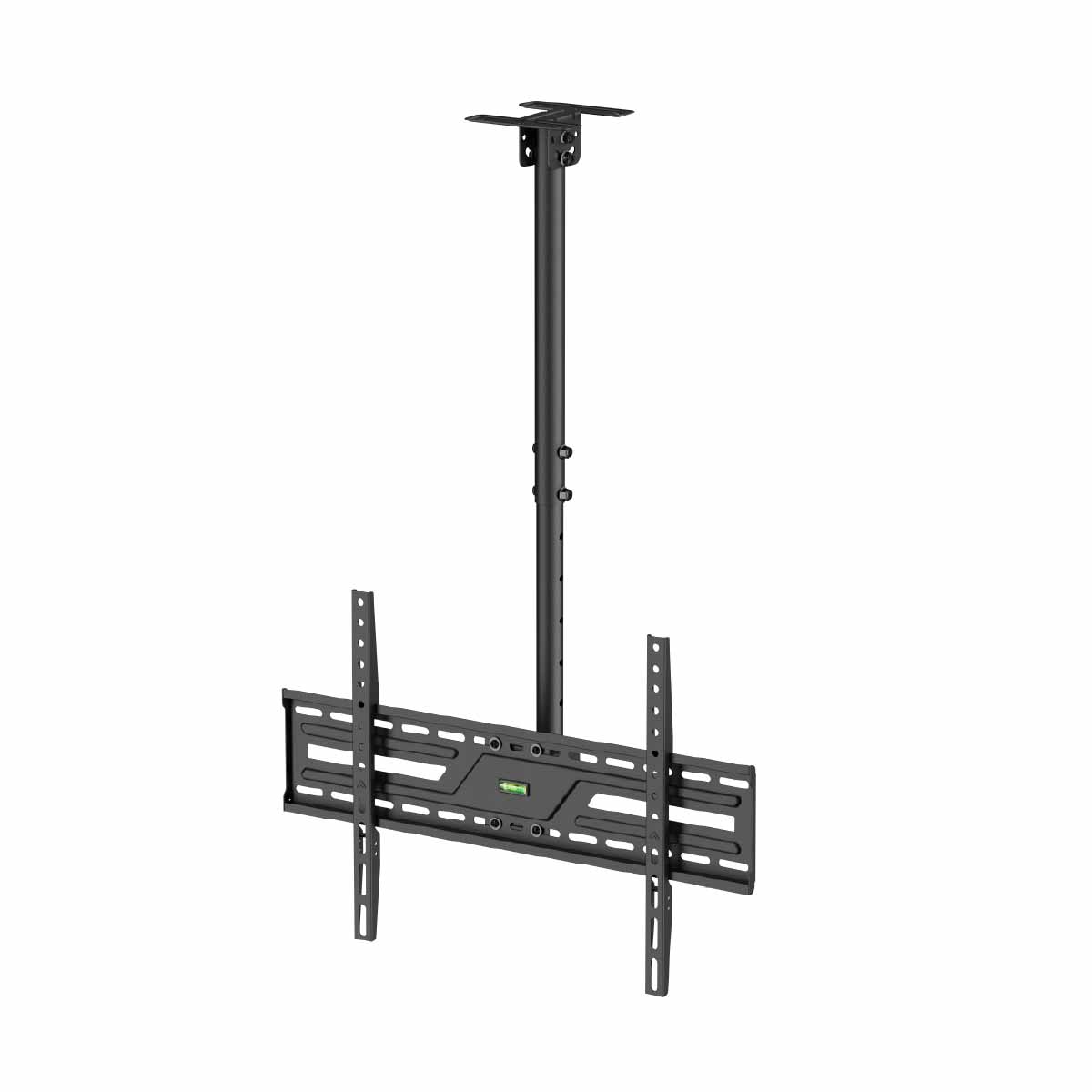

The SH 648C Free Tilting Telescopic Height Adjustable TV Ceiling Mount offers strong and versatile overhead installation for 37″–86″ flat or curved TVs, supporting up to 50kg with dual strength testing approval. Featuring a telescopic profile adjustable from 527–777mm, it provides smooth -25° tilt, +180°~-180° swivel, and +2°~-2° screen leveling for perfect viewing. Constructed from durable steel with powder coating, it includes a detachable panel, fixed wall plate, and integrated cable management for clean, stable installation.
TV Ceiling Mount, TV Mount, Height Adjustable TV Mount, Flat Ceiling TV Mount, TV Bracket, TV Hanger, Pitched Roof TV Bracket, Pitched Roof TV Mount, Free Tilting Telescopic Height Adjustable TV Ceiling Mount
| Quantity per Carton | 4 units |
| Gross Weight | 16.2 |
| Net Weight | 14.4 |
| CBM per Carton | 0.053 |
| Carton Dimension | 66x32.8x24.3 |
