Home > Motorized Mounts and Stands > Motorized TV Ceiling Mounts > Motorised TV Ceiling Mount
SH 5010RCView SH 5010RC - ImageView SH 5010RC - ImageView SH 5010RC - ImageView SH 5010RC - Image

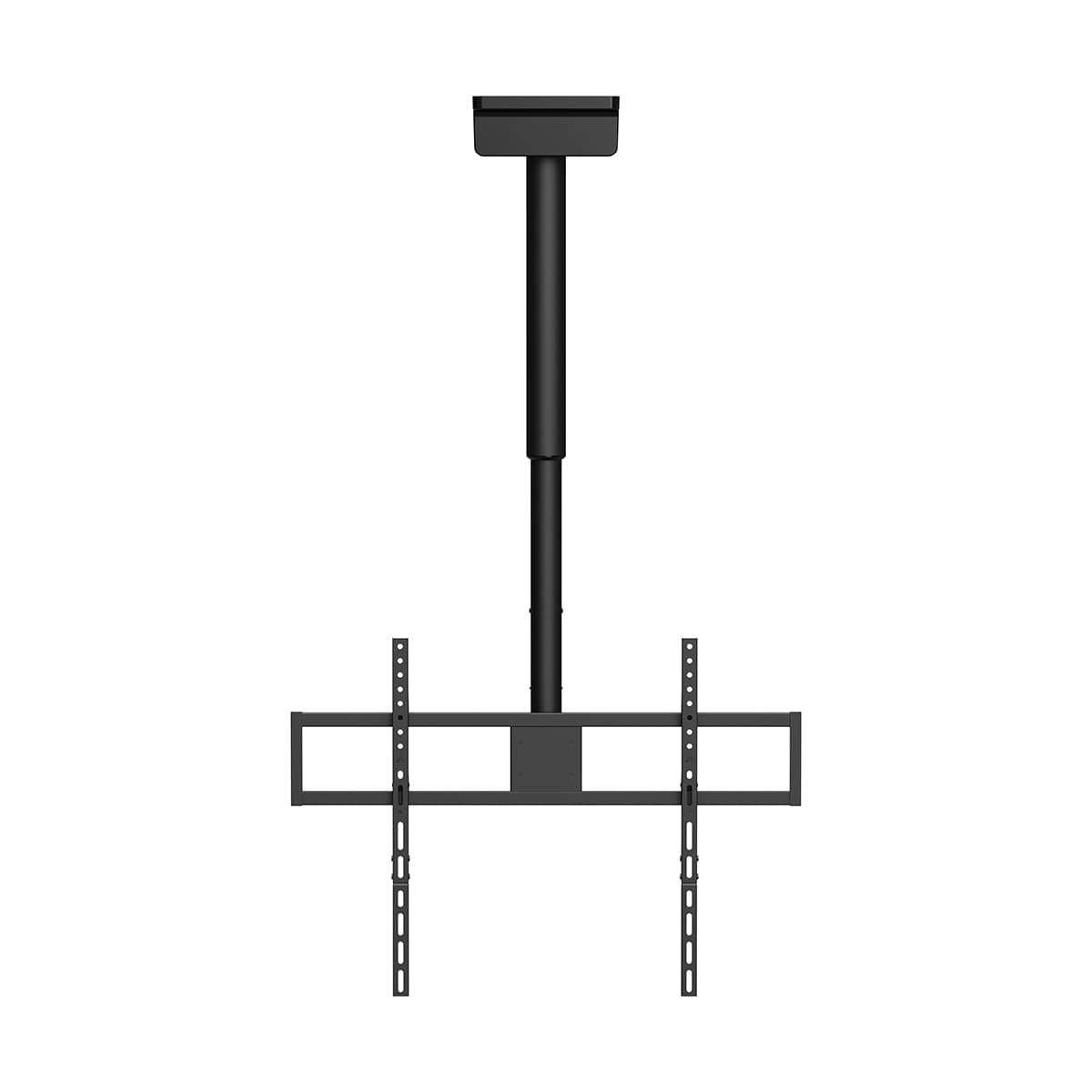

SH 5010RC

SH 5010RC

Motorised TV Ceiling Mount

50"~100" icon
Screen Size50"~100"
800x600mm icon
Max Vesa800x600mm
65kg icon
Weight Capacity65kg
1000~1400mm icon
Profile to Wall1000~1400mm
+3° ~ -20° icon
Tilt Range+3° ~ -20°

Tags:Heavy-Duty TV Ceiling Mount, Swivel TV Ceiling Mount, TV Ceiling Mount, Height Adjustable TV Mount, TV Mount, Motorized TV Mount, Motorized TV Ceiling Mount, SH5010RC

Data Sheet

Overview

Product CategoryMotorized TV Ceiling Mount
MaterialSteel,Aluminum,Plastic
Metal Sheet ThicknessBracket Arm THK=1.5mm cold-rolled sheet,Wall Plate THK=2.5mm pickling sheet (Bracket Arm THK=0.059" cold-rolled sheet,Wall Plate THK=0.098" pickling sheet)
Surface FinishPowder Coating
ColorFine Texture Black
Profile1000~1400mm
Tilt Range+3°~-20°
Swivel Range+180°~-180°
InstallationCeiling Mounted
Panel TypeDetachable Panel
Product CategoryMotorized TV Ceiling Mount
MaterialSteel,Aluminum,Plastic
Metal Sheet ThicknessBracket Arm THK=1.5mm cold-rolled sheet,Wall Plate THK=2.5mm pickling sheet (Bracket Arm THK=0.059" cold-rolled sheet,Wall Plate THK=0.098" pickling sheet)
Surface FinishPowder Coating
ColorFine Texture Black

Features

  • Wide TV CompatibilitySupports most 50"~100" TVs weighing up to 65kg.
  • Intelligent Collision ProtectionAutomatically detects obstacles to help prevent damage during operation.
  • Motorized Swivel AdjustmentEasily adjust the screen angle with smooth powered movement.
  • Stepless Height ControlAllows precise height positioning for optimal viewing comfort.
  • Heavy-Duty ConstructionDurable design ensures stable support and long-lasting performance in residential and commercial settings.

Description

The SH 5010RC is a heavy-duty motorized TV mount designed for most 50"~100" displays up to 65kg. Its motorized swivel function and stepless height adjustment allow effortless positioning for the perfect viewing angle. Built with durability in mind, it delivers reliable performance for daily use. An intelligent collision protection system enhances safety by preventing accidental impacts during movement. Ideal for residential, office, commercial, and fitness environments.

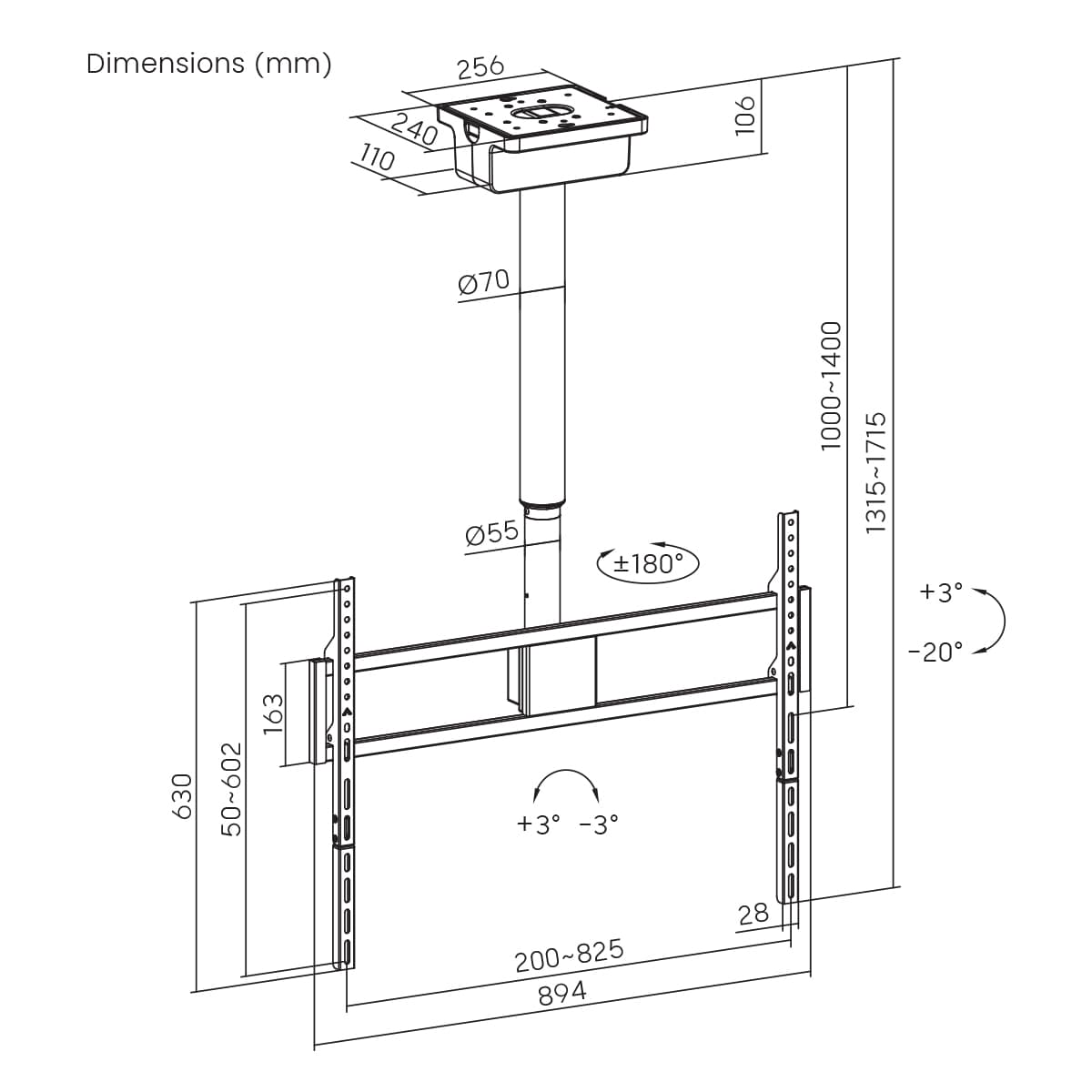

Drawing

Drawing
