| Pixel Pitch: | P1.538 |
| Module Resolution (W*H): | 208x104 |
| Module Dimension (mm): | 320x160x16.6 |
| Operating humidity: | 10 to 60% RH, non-condensing |
| Warranty: | 2 year |
| Color uniformity: | ±0.003Cx,Cy |
| Grayscale (bit): | 14bit |
| Color temperature (K): | 2000 to 9300 |
| Viewing Angle: | 140°/140° |
| Brightness (nits): | ≥500 |
| Power Supply: | DC 4.5 |
| Pixel density (pitch/m²): | 422500 |
| Unit board signal interface: | HUB75 |
| Weight (Kg/pcs): | 0.46kg |
| Contrast Ratio: | 5000:01 |
Ultra-Fine 1.538 mm Pixel Pitch – Delivers superior image clarity for detailed content.
High Pixel Density (422,500/m²) – Ensures crisp visuals for high-definition displays.
14-bit Grayscale Processing – Produces smooth gradients and realistic color rendering.
Wide Viewing Angle (140°/140°) – Consistent image quality across broad perspectives.
Compact & Lightweight (0.46 kg) – Easy integration with HUB75 interface for versatile installations.

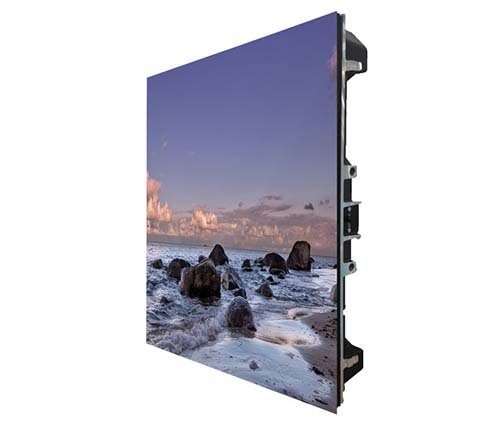

The MW7715-MI-H1C is a premium indoor LED display module engineered for high-resolution, close-range viewing. With a pixel pitch of just 1.538 mm and a module resolution of 208×104, it offers ultra-sharp imagery and outstanding visual detail. Boasting 14-bit grayscale, excellent color uniformity, and wide viewing angles, this module is ideal for conference rooms, studios, and digital signage where clarity and performance are paramount.
