iL-C503

CCTV Camera Pole

Tags:CCTV Camera Pole, Security Camera Pole, Surveillance Pole, Outdoor Camera Pole, Camera Mount Pole, CCTV Camera Pole, iL-C503

Data Sheet

Overview

ApplicationCCTV Camera Pole
Dimensions3mtr height, 90mm Dia, 2mm Thickness
Base300 × 300 مم، سماكة 10 مم
MaterialMS with Powder coating
FeaturesCamera brackets with cable management
ApplicationCCTV Camera Pole
Dimensions3mtr height, 90mm Dia, 2mm Thickness
Base300 × 300 مم، سماكة 10 مم
MaterialMS with Powder coating
FeaturesCamera brackets with cable management

Features

  • 3-Meter HeightProvides elevated camera positioning for wider surveillance coverage.
  • Heavy-Duty Steel ConstructionMade from durable powder-coated mild steel for reliable outdoor use.
  • Stable Base Plate300 × 300 mm base with 10 mm thickness ensures secure installation.
  • Integrated Cable ManagementHelps route and protect camera cables for a clean setup.
  • Professional CCTV InstallationSuitable for commercial, industrial, residential, and security surveillance applications.

Description

The iL-C503 CCTV Camera Pole is a durable mounting solution designed for outdoor surveillance installations. Standing 3 meters high with a 90 mm diameter and 2 mm thickness, it provides strong support for compatible CCTV cameras. The 300 × 300 mm, 10 mm thick base ensures stable installation. Made from powder-coated mild steel, it offers durability, integrated cable management, and a professional setup for commercial, industrial, residential, and security applications.

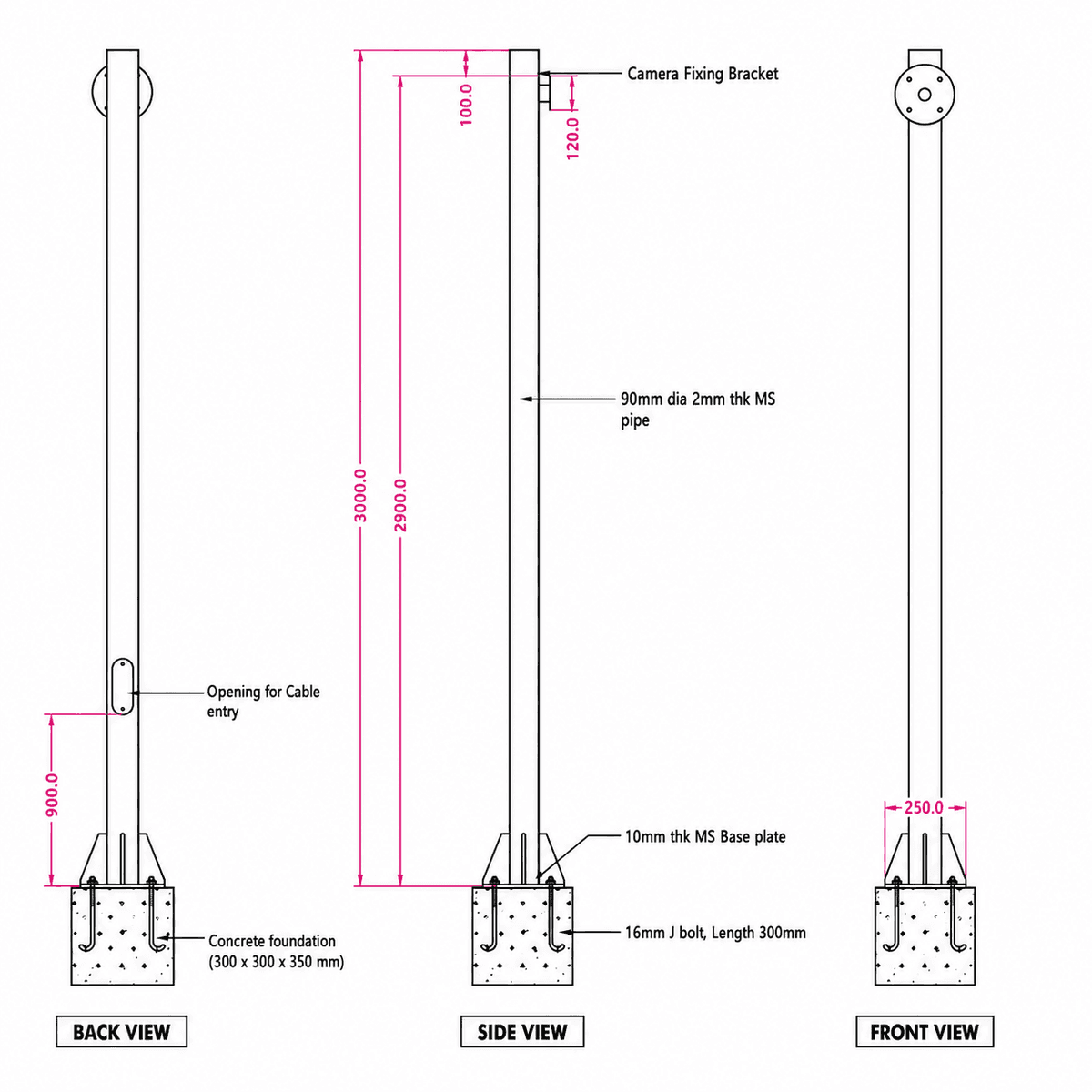

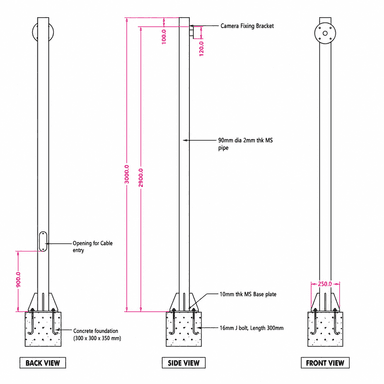

Drawing

Drawing
